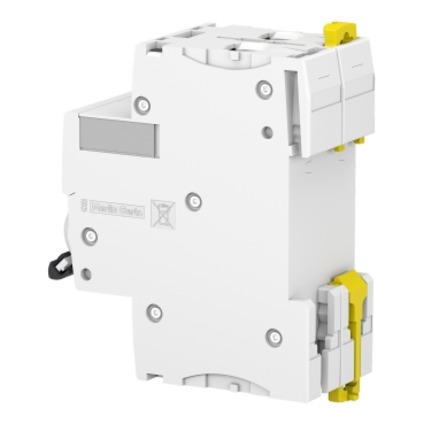

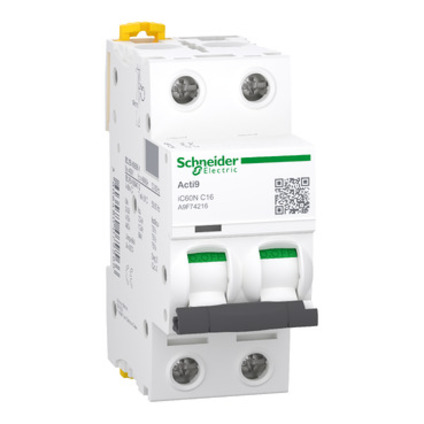

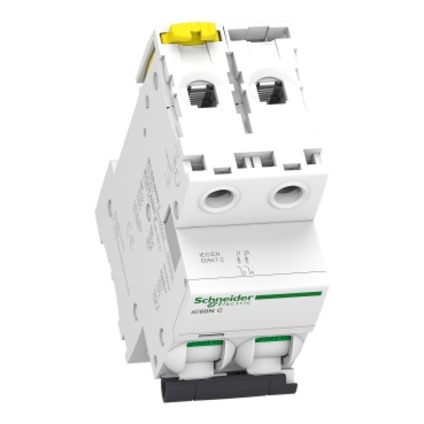

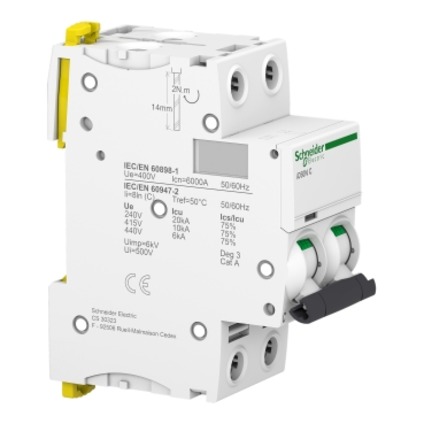

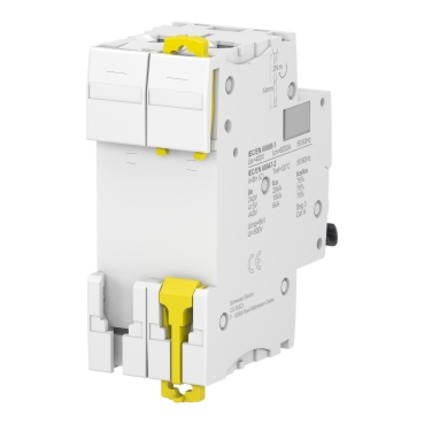

Circuit breaker, Acti9 iC60N, 2P, 16 A, curve C, 6000 A (IEC 60898-1), 10 kA (IEC 60947-2)

The Acti9 iC60 circuit breakers are part of the complete Acti9 electrical system, providing protection, monitoring, and control of your electrical installation. The Acti9 iC60 miniature circuit breakers are divided into three ranges: Acti9 iC60N, iC60H, and iC60L to meet your electrical needs:

• Rated current: 1 to 63 A
• Wide range of breaking capacities – up to 100 kA – and tripping curves: B, C, D, K, Z, and MA
• Suitable for isolation in accordance with IEC 60947 standard
• Operating voltage: up to 440 V AC, insulation voltage: 500 V
• Compatible with the Acti9 range and Compact NSX molded case circuit breakers (MCCB)
