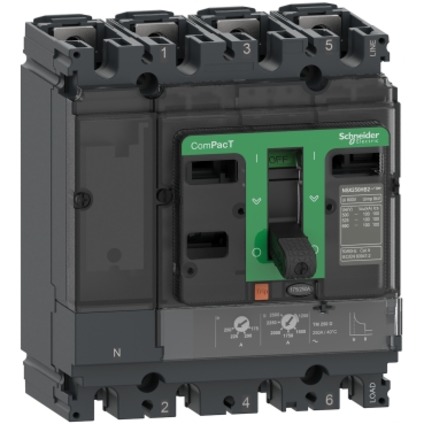

ComPacT NSX160F - Circuit Breaker - TM-D 100A - 4P3D - 36kA - Fixed Mounting
Our new generation of ComPacT NSX circuit breakers features an innovative and modular design. It enables faster and more cost-effective installation thanks to improved connectivity with new wireless auxiliary contacts. ComPacT NSX is perfectly suited for all your projects.
Description
ComPacT NSX100 to 630 offer high performance and a wide range of interchangeable trip units for protecting key applications. The electronic versions provide precise protection with wide adjustment ranges and can integrate measurement and communication capabilities. When combined with the dedicated FDM display, they offer full Power Meter functionality and operational support, or simple wireless monitoring via PowerTag NSX.
General features:
- 1, 2, 3 or 4 poles
- Rated current: 100 to 630 A
Breaking capacities:
- Up to 250 A: 25, 36, 50, 70, 100, 150, 200 kA at 415 V AC
- Up to 630 A: 36, 50, 70, 100, 150, 200 kA at 415 V AC
- Special breakers: 75 & 100 kA at 690 V AC and 10 kA at 1000 V AC
Fixed or withdrawable
Interchangeable trip units: magnetic, thermal-magnetic, and electronic
Advanced trip units with integrated measurement: I, U, P, E, THD, f, CosPhi
Integrated residual current protection via MicroLogic Vigi
Product details:
4 poles WITHOUT NEUTRAL PROTECTION – 100 A – Breaking capacity: 36 kA at 415 V AC – Fixed version – Thermal-magnetic trip unit.
Features
Molded Case (Circuit Breaker) – MCCB
