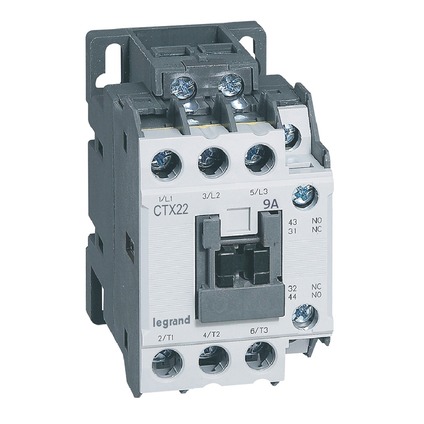

CTX³22 Power Contactor, 3 Poles – 9A, Screw Terminals – with Integrated Auxiliary Contacts 1 NO and 1 NC – 230V~

CTX³ power contactors enable motor switching and circuit control for the most demanding applications, up to 800 A. The compact CTX³ mini contactors, with their reduced size, integrate easily into control or distribution panels for switching motors, lighting, and heating circuits up to 16 A. Thanks to a wide range of accessories, CTX³ contactors can be used in a variety of applications: capacitor bank switching, source inversion, motor reversing, timed starters, machine-mounted control boxes, and more.

CTX³22 power contactor – 3-pole, 9A (AC3) – 25A (AC1)

With built-in auxiliary contacts – Screw terminal connection for cables with or without ferrules and cables with lugs

Maximum AC3 power at 380V to 440V: 4kW – Control voltage: 230V AC – Integrated auxiliary contacts: 1NO + 1NC

Compliant with IEC 60947-1 and IEC 60947-4-1 standards.
