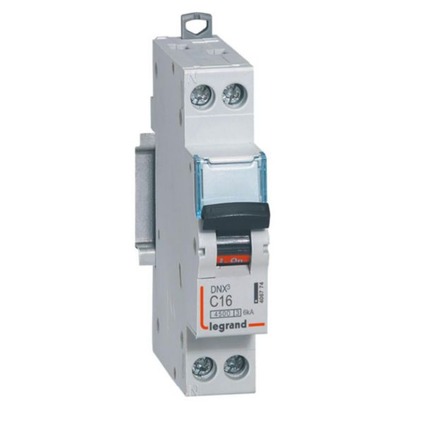

DNX³4500 Circuit Breaker - 6kA breaking capacity - Screw terminal - (1P+N) -230 V AC, 16 A, Curve C - 1 module wide
DNX³, modular 1 pole magnetic-thermal circuit breaker with fully visible breaking for control, protection, and disconnection of electrical circuits.
Description
The DNX³ and DX³ circuit breakers with fully visible breaking are designed for the protection and disconnection of electrical circuits in Phase + Neutral configurations. The DNX³ and DX³ circuit breakers meet installation requirements in residential and commercial buildings thanks to their breaking capacity ranging from 4,500/6kA up to 50kA.
There are three types of connections available:
- Auto/Auto: top feed and bottom output with auto terminals
- Auto/Screw: top feed with auto terminals and bottom output with screw terminals
- Screw/Screw: top feed and bottom output with screw terminals.
They are available with C and D trip curves as well as with the Stop Arc arc fault detection device. A front-facing label holder allows for circuit identification. They can accommodate DX³ signaling and control auxiliaries and support the use of power supply comb busbars.
Features
Modular
