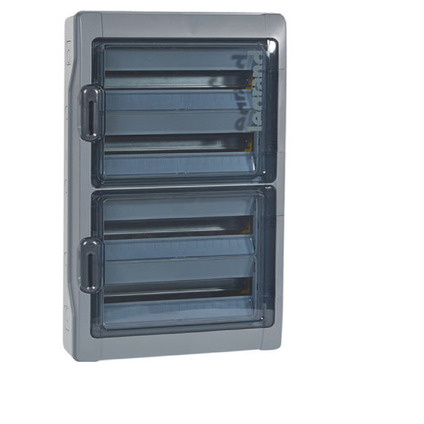

Plexo³ Waterproof Enclosure 4x18 Modules with Pre-mounted Direct Piercing End Caps, IP65 IK09 – Grey
Waterproof and resistant, Plexo³ enclosures are ideal for all worksites. Thanks to their IP65 rating, UV treatment, and double locking points, they guarantee sealing for installations in humid indoor and outdoor environments. With their IK09 impact resistance, they offer strong shock protection, and the recessed handle is safeguarded.
Description
4 rows, 18 modules with 3 blanking plates of 5 modules – Pre-mounted direct piercing end caps - IP65 – IK09 – Class II – UV resistant according to ISO 4892-2 – Removable frame and cover
Two-position rail for modular products and molded boxes – Rail spacing 150 mm – Supplied with:
IP2X automatic connection terminal blocks for protective conductors
Mounting bracket to fix the complete Plexo equipment on the side of the enclosure
Lockable door handle, sealable cover and front plate – Impact reinforced polystyrene material – Light grey enclosure L750A, dark grey cover R746A
Self-extinguishing: 750°C glow wire test compliant with regulations for public buildings (ERP) and high-rise buildings (IGH) according to NF EN 60695-2-11 – Compliant with IEC 62208: allows assemblies conforming to IEC 61439-3.
Features
Industrial
Components supplied: -1 mounting plate -1 gasket -1 Plexo equipment front plate -4 screws Ø3x20 -2 screws Ø3x10 Starting from 2-row enclosures (0 019 22/23/25/26/27) Available as accessory reference 0 019 71
