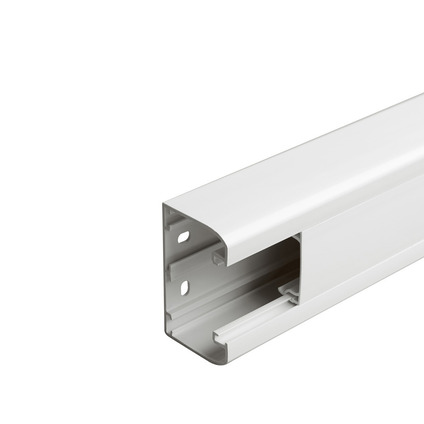

075601 – 1-Compartment Mosaic Trunking 50x80 mm – Length: 2 m – White – Direct Clipping for 45x45
The Mosaic trunking with direct clipping enables cable routing and quick, easy installation of Mosaic functions thanks to direct clipping onto the profile.
Available in sizes ranging from 50 x 80 mm to 50 x 180 mm, it meets all requirements for commercial and office spaces.
A white antimicrobial version is also available for environments with hygiene constraints.
Fully compatible with Mosaic devices, the addition of the Soluclip accessory ensures anti-slip and anti-pull-out protection, delivering a flawless finish on the profile covers.
Pre-wired sockets with this accessory are also available, including 2P+E surface-mounted outlets and RJ45 sockets.
All standard cable routing accessories are included in this trunking range.
Description
1-Compartment Trunking 50x80 – Ref. 0 756 01
Color: White
Mosaic range
Mounting options:
- Expansion plugs for immediate fixing (without screws or nails – Ref. 0 308 99)
- DLP quick plugs (for plasterboard walls, min. 10 mm thickness – Ref. 0 308 97)
- Screws, nails, etc.
Cutting method:
Use a saw (such as a hacksaw or molding cutter for the covers)
Packaging:
10 lengths of 2 meters each for Ref. 0 756 01 (cardboard packaging)
Features
PLASTIC
Supplied with cover, 2m length
