Description

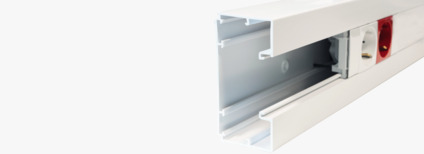

The Efapel 11030-CBR flush-mount trunking offers two 32 mm usable spaces, allowing for efficient cable management.
For example, the manufacturer states that the Efapel 11030 CBR double-compartment trunking can accommodate up to 148 wires of 1.5 mm², 105 wires of 2.5 mm², or 63 wires of 6 mm² in H07 VU per compartment.
The Efapel 11030 CBR computer trunking is RAL 9003 white, a versatile color suitable for various applications.
This Efapel 11030-CBR electrical trunking features an IP 44 protection rating, ensuring resistance to dust and water splashes. Its impact resistance is IK09, providing protection against impacts, while the associated accessories have an IK07 shock resistance.
Designed to withstand temperatures ranging from -25°C to +60°C, the Efapel 11030 CBR trunking also offers UV resistance, ensuring its durability in a wide range of environmental conditions.
Key Features:
- Packaging: 8 meters (4 lengths of 2 meters)
- External Dimensions (H x W): 155 x 50 mm
- Internal Dimensions (H x W): Two compartments of 75 x 47 mm
- Length: 2 meters
- Protection Rating: IP44
- Impact Resistance: IK09 (IK07 for accessories)
- Operating Temperature: -25°C to +60°C
- Useful Volume: 1194 mm² per compartment
- Color: White RAL 9003
- Standards: EN 50085-2
Features
PLASTIC
Supplied with cover, 2m length
