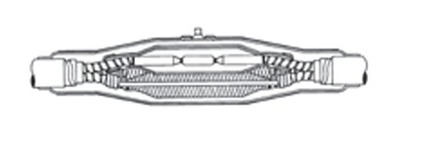

3M straight-through joint – 92 A 25F - Medium Voltage Resin Injection straight-through joint - Rated for 6/10(12) kV
Reference
80176
Brand
Download the technical sheet :
The 92 A 25F kit enables the connection of synthetic cables or impregnated paper transition cables in tripolar-to-tripolar or tripolar-to-three unipolar configurations, from 50 mm² to 150 mm².
Description
Description:
Insulation is achieved using phase spacers and reinforced with self-fusing E.P.R. tape wrapping (Scotch 23). Sealing and mechanical protection are ensured by the injection of Scotchcast 40 resin.
Applications:

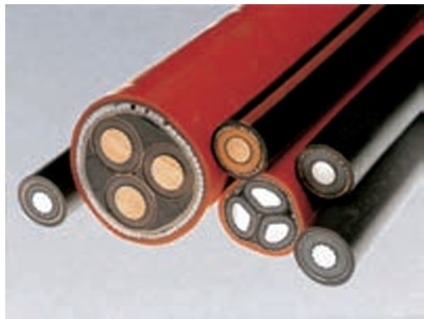

For synthetic insulation or impregnated paper cables in tripolar-to-tripolar or tripolar-to-three unipolar configurations, type 6/10(12) kV.
Features
Product range
straight-through joint
Type of technology
Tape-wrapped
Device name
92 A 25 F
Tension
6/10(12) kV
Nominal section
3 x 50 to 3 x 150 mm²
Contractual guarantee
1 YEAR
Country of origin
FRANCE
