92 NB Series Cast Resin Joints – Low Voltage Industrial Application 0.6 / 1 (1.2) kV
Reference
92 NB A
Brand
Download the technical sheet :

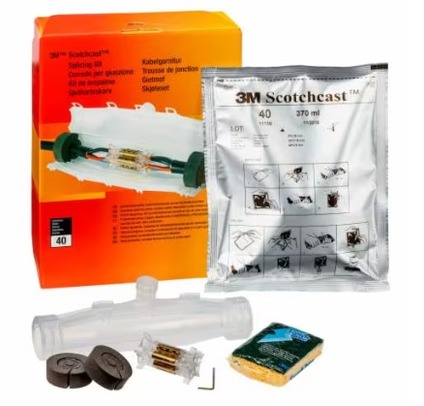

- Joint kit for industrial cables
- Each kit contains all necessary components for making the connection, except the connectors
- Integrated casting system allows for resin mixing and mold filling without direct contact with the resin
- Two-component Scotchcast™ resin
Description
Applications
- Low-voltage public lighting – Industrial – Commercial sectors
- A single product for jointing, insulation, sealing, and mechanical protection!
- Suitable for industrial cable types:
o U1000 R2V
o U1000 AR2V
o U1000 RVFV
o U1000 ARVFV
o Others (Refer to outer sheath diameter)
- Maximum operating voltage: 0.6 / 1 (1.2) kV
Features
Product range
straight-through joint
Type of technology
Resin cast
Device name
92 NB A
Tension
0,6 / 1 (1,2) kV
Nominal section
1,5 to 35 mm²
Contractual guarantee
1 YEAR
Country of origin
BELGIUM
