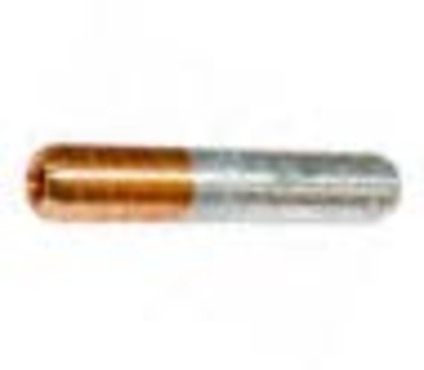

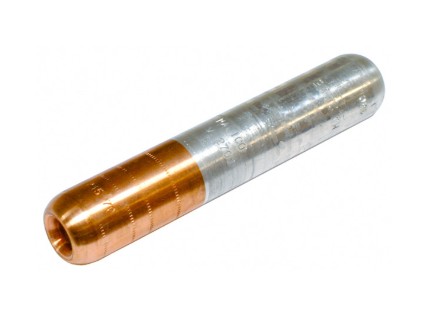

Bimetallic Aluminum-Copper cable sleeves
Reference
RJ-AU
Brand
Download the technical sheet :
RJ1AU bimetallic lugs are electrical connection components used to connect aluminum conductors to copper terminals or busbars, particularly in low voltage (LV) and medium voltage (MV) networks.
Description
Execution compliant with standard NFC 33-090-1
Material: Aluminium 1050 A, Copper Cu A1
Friction-welded
Aluminium barrel coated with grease and sealed with a cap
Installation by deep stepped indentation on the aluminium side and hexagonal crimping on the copper side
Supplied with insulating material required to fill the crimping indentations.
Features
Product range
Bimetallic sleeve
Type of technology
Aluminium & copper
Device name
RJ-AU
Nominal section
50 to 300 mm²
Contractual guarantee
1 YEAR
Country of origin
GERMANY
