Cable Tray Clickable - Dimensions : 60x200 - Thickness 1mm - Sendzimir or zing Magnesium
Cable trays are used to route different types of cables:
- Electrical cables: for power supplies and backup power;
- Hertzian reception cables: TV or satellite;
- Multimedia cables: sound systems, videoconferencing, etc.;
- Computer cables (copper, coaxial, fiber optic), intranet, and internet.
They can also serve as supports for fluids (gas, compressed air, water, etc.).
Due to the use of cable trays for various purposes and to prevent any interference, it is advisable to physically separate different types of cables (power, computer, audio/video, etc.) within the cable trays and ensure the equipotentiality of all metallic cable trays.
Common cable trays can be made of galvanized steel, electroplated, zinc-aluminum alloys, stainless steel (pickled-passivated or not), aluminum, fiberglass, or composites (fiber-reinforced plastics). The selected material depends on the characteristics (and defects) inherent to each.
When a galvanized steel cable tray is cut, the two surfaces created by the cut must be painted with a zinc-rich compound to protect the metal from corrosion.
Description

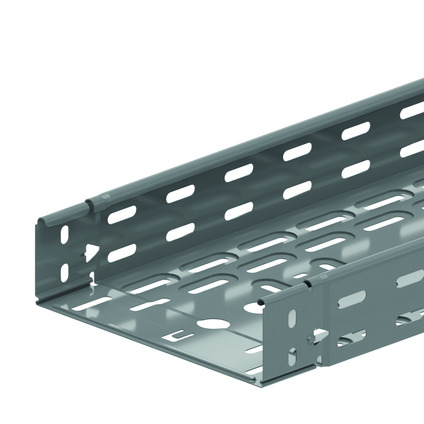

Cable tray – height 60mm, width 200mm, thickness 1mm with Snap-fit ends
Our KBSCL cable tray is now available in Zinc-Magnesium (ZM). Thanks to its unique chemical composition, zinc-magnesium provides corrosion resistance at least equal to standard hot-dip galvanization.
Other lengths available upon request: min. 1.95 m / max. 6 m in 150 mm increments.
FEATURES
DIMENSIONS: 60x200 – THICKNESS: 1mm
Snap-fit system
Simplest connection – achieved in one single movement
Fast – A few clicks and you're ready for the next joint. Perfect alignment every time.
Strong – As strong as a bolted joint
Reliable – Maximum load with interlocking connection
Multiple connection options available
Cost-effective – Faster work equals time and money saved
High quality
Wide range – including a full line of accessories
Deep perforations for:
- Increased stability
- Greater load-bearing capacity
- Improved ventilation
Features
Sendzimir finish or Zink magnesium
