Description

Characteristics

Reliable stress control due to flexible silicone stress control elements, For both copper and aluminium conductors, For all cables with copper wire or tape screen, Wide conductor and cross-section range, Quick, safe and easy assembly, Ready for immediate operation

Applications

Indoor, Outdoor, Underground, Water, Installation ducts, Ductwork

Features

Product range

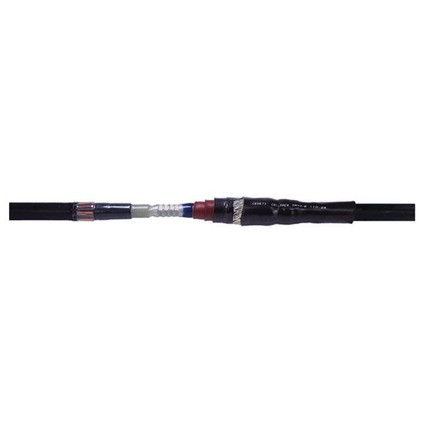

straight-through joint
Type of technology

Heat shrinkable

Device name
CHM
Tension
U0/U (Um) 12/20 (24) kV - 12,7/22 (24) kV
Nominal section
70 to 240 mm²
Equipment included

Thick wall heat shrinkable insulation tubes Thick wall heat shrinkable outer tube with hot melt adhesive Silicone field control elemens Copper braid tube Pressure springs Field control filling tape (blue) Assembly material Installation instruction

Contractual guarantee
1 YEAR
Country of origin
GERMANY
