ICTA 3422 – Corrugated Electrical Conduit with Fish Tape - Available from 16 to 63 mm²
Reference
ICTA
Brand
Download the technical sheet :

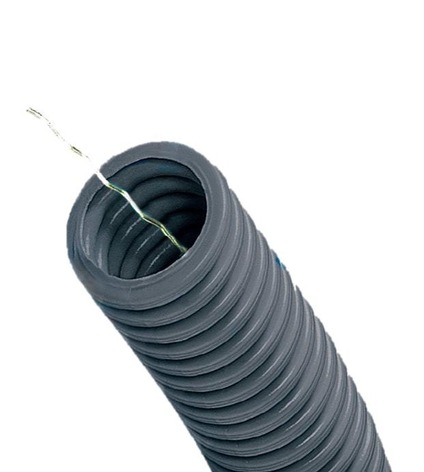

The ICTA electrical conduit is used to group and conceal multiple wires within a wall. This corrugated electrical conduit is an insulating duct available in various sizes, designed to protect electrical wires and conductors.
Resistant to impacts, heat, and fully waterproof, the ICTA 3422 conduit effectively isolates electrical wires and cables. Equipped with a draw wire for easier handling by workers, this corrugated conduit is available in three colors: gray, black, and green.
Application: The ICTA electrical conduit can be installed either surface-mounted or embedded within the electrical installations of residential buildings.
Description
Advantages of the ICTA Electrical Conduit Offered by Courant Internationale
- Built-in draw wire
- Available in multiple diameters
- Complies with NF C 15-100 standard
- Material: Polyolefins
- Crush resistance: 750 N at +23°C (±2°C)
- Impact resistance: 6 joules at -5°C
- Minimum operating temperature: -5°C
- Maximum operating temperature: +90°C
- Insulation resistance: 100 under 500 V DC
- Flame retardant: 1 kW burner test
- Heat resistance: +90°C (±2°C) for 4 hours, then under a 2 kg load for 24 hours at the same temperature
- Watertightness: IP 44 certified
Features
Product range
Flexible Conduit
Type of technology
Polyolefins
Device name
ICTA 3422
Nominal section
16 to 63 mm²
Equipment included
With draw wire
Contractual guarantee
1 YEAR
Country of origin
FRANCE
