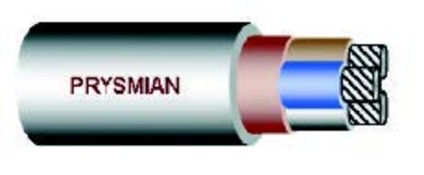

U-1000 AR2V cables with rigid aluminum conductors and PVC insulation (industrial) - class 2 - Available in multiple conductors and sections
The AR2V cables, also known as Rigid Aluminum Cables with PVC Insulation, are essential components for numerous electrical applications. Their robust design, reliable performance, and durability make them a trusted choice for a variety of projects.
Code Explanation:
U: Cable conforming to the UTE standard
1000: Rated voltage up to 1000VAC
A: Conductor made of aluminum
R: Insulation of conductors made of cross-linked polyethylene (XLPE)
2: Independent filler inside the sheath
V: Sheath made of polyvinyl chloride (PVC)
Description
The U-1000 AR2V cable is a rigid low-voltage aluminum power cable designed for tertiary and industrial installations. It can be used for building riser columns. Resistant to UV thanks to its PVC sheath, the AR2V aluminum cable can also be used outdoors or buried with adequate mechanical protection.
Basic Colors:
Single conductor: Black
Two conductors: Blue-brown
Three conductors: Brown-blue-Green/Yellow
Four conductors: Green/yellow-brown-black-gray
Five conductors: Blue-brown-black-gray-green/yellow
Available Sections (1 CONDUCTOR):
1.5 - 2.5 - 4 - 6 - 10 - 16 - 25 - 35 - 50 - 70 - 95 - 120 - 150 - 185 - 240 - 300 - 400-500-630-800-1000 mm²
Common Variants in Multiple Conductors:
3G1.5mm², 3G2.5mm², 3G6mm², 5G1.5mm², 5G2.5mm², and also in less common versions like 5G10mm², 5G16mm², 4x16mm², 3G25mm², etc.
Packaging:
Reel of 25, 50, or 100 meters, or drum.
Features
Aluminium
