Altistart 170A 400V soft starter

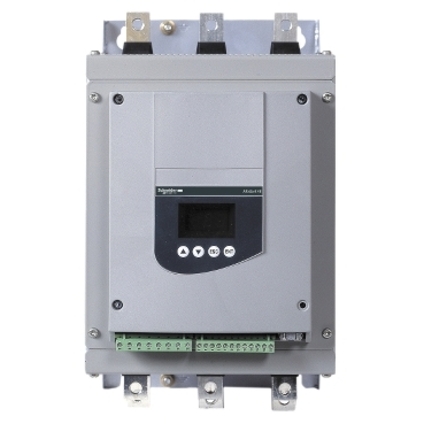

The ATS48C17Q is a soft starter used to smoothly start and stop three-phase motors in industrial applications such as pumps, fans, compressors, conveyors, etc. It is designed to be a simple and reliable solution for installations where soft starts are necessary to extend motor life and reduce inrush current peaks.

Technical characteristics:

Power: This model can be used for motors up to 15 kW at 400 V (three-phase).

Supply voltage range: The starter can operate on a three-phase power supply with a voltage range of 380 to 480 V.

Rated current: It can handle currents up to 29 A.

Control type: The soft start is achieved by controlling torque and speed, avoiding current surges at startup that could damage equipment.

Technology and Features:

Smooth start and stop: The ATS48C17Q allows gentle motor start and stop, reducing mechanical shocks and electrical overloads. This extends the life of motors and associated components.

Reduction of starting currents: Thanks to torque control, this starter limits starting currents (often up to 6 to 7 times the rated current), thus reducing impacts on the electrical network and motors.

Electronic switching: Unlike traditional starters that use resistors or transformers, the ATS48 uses electronic control to regulate speed and torque, improving system efficiency.

Reduced mechanical stress: Smooth acceleration and deceleration reduce mechanical stress on motors, gearboxes, belts, and other transmission components.

Safety and Protection Features:

Motor protection: The ATS48C17Q includes protections against overloads and short circuits, with devices that ensure rapid shutdown in case of failure.

Emergency stop: This model includes an emergency stop function to immediately stop the motor if needed.

Temperature monitoring: The starter can include temperature sensors to monitor the motor's condition.

Ease of Installation and Maintenance:

Simple installation: The ATS48C17Q is designed for easy installation with minimal wiring and can be easily mounted in existing control cabinets.

Integrated diagnostics: The starter offers real-time diagnostic functions and alerts that help monitor motor and system performance, facilitating preventive maintenance.

User-friendly interface: It features a control panel that enables quick configuration and easy management of start and stop parameters.

Typical Applications:

Pumps: Commonly used in pumping applications where soft starting avoids water hammer effects in pipes and reduces component wear.

Fans and compressors: Helps regulate motor speed progressively, preventing electrical overloads and jerks.

Conveyors and production systems: Suitable for conveyor systems where progressive start is needed to ensure reliable startup and avoid mechanical damage.

Energy Efficiency and Durability:

The ATS48C17Q reduces energy consumption by avoiding inrush current peaks, helping lower the overall electricity usage of the installation.

It also contributes to equipment durability by reducing mechanical and electrical stress, thus lowering wear and maintenance needs.

Additional Features:

Modularity: Different variants of the Altistart 48 exist to meet various needs (power, control characteristics, etc.), allowing customization for specific configurations.

Compact design: The ATS48C17Q is designed to be compact, facilitating integration into control cabinets with limited space.

The Schneider Electric ATS48C17Q soft starter is designed to provide smooth start and stop of three-phase motors up to 15 kW. It is especially useful in industrial applications where reducing electrical and mechanical stress is essential. This starter helps protect motors, improve energy efficiency, reduce maintenance costs, and ensures reliable and safe management of electric motors across a wide range of applications.
