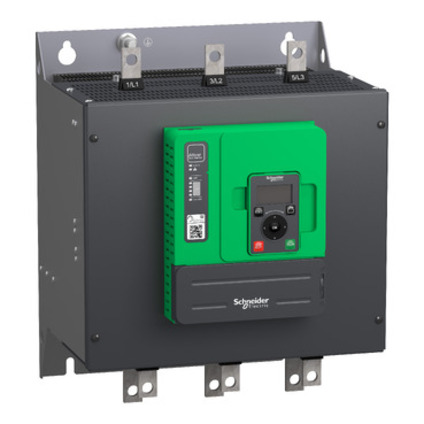

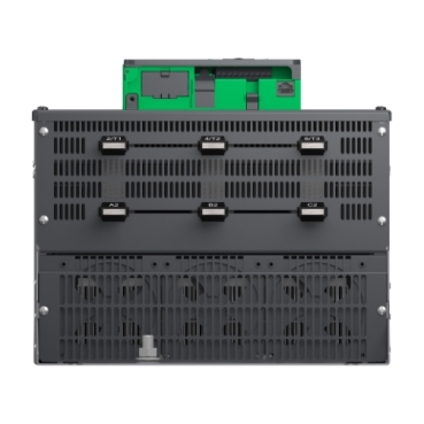

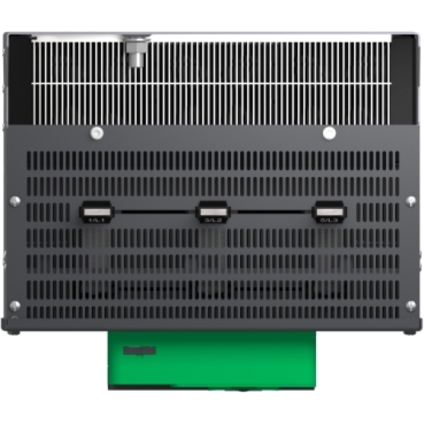

Altistart ATS480 soft starter - 320A - 208V to 690V

The ATS480C32Y is a soft starter from Schneider Electric’s Altistart 48 range, designed for starting and stopping three-phase motors smoothly, reducing inrush currents and mechanical stresses on the motor and its components. This model is particularly suited for industrial applications where gradual start and stop are essential to avoid premature wear and optimize system performance.

Applications:

The ATS480C32Y is used for controlling three-phase motors in various industrial applications such as pumps, fans, compressors, conveyors, and production equipment. It provides an efficient and reliable solution in environments where soft starting is crucial to reduce mechanical shocks and current spikes that could impact other system equipment.

Technical specifications:

Power: Suitable for motors up to 32 kW (approximately 43 horsepower) at 400 V.

Supply voltage range: Operates on three-phase systems with input voltage ranging from 380 to 480 V.

Nominal current: Can handle currents up to 63 A, making it suitable for medium to high power motors.

Start/stop control: Uses electronic control for smooth starting (controlled acceleration) and stopping (controlled deceleration) to avoid mechanical stresses on the motor and connected equipment.

Technology and features:

Soft start and stop: Reduces starting current spikes (which can reach 6 to 7 times the motor’s nominal current), protecting the motor and lessening impact on the electrical network.

Mechanical stress reduction: Controls motor torque and speed to reduce shocks on mechanical components, extending equipment life.

Torque modulation: Ensures the motor gradually reaches its speed, crucial for applications with heavy loads or frequent starts.

Adaptability: Configurable for different starting conditions (direct start, soft start, or torque-controlled start), making it versatile for a variety of industrial uses.

Protection and safety:

Motor protection: Includes built-in protections against overload, short circuits, and overheating for enhanced safety of the motor and system.

Emergency stop: Features an emergency stop function to immediately cut power in case of faults or malfunctions.

Diagnostics and monitoring: Offers diagnostic functions to monitor motor and starter status, enabling quick anomaly detection and preventive maintenance planning.

Installation and maintenance:

Easy installation: Designed for straightforward mounting in industrial control cabinets with minimal wiring and user-friendly configuration interface.

Simplified maintenance: Provides real-time operational data for preventive maintenance to avoid major failures. Integrated monitoring allows rapid diagnosis of potential issues.

Typical applications:

Pumps and pumping systems: Helps prevent water hammer during start/stop, protecting pipes and equipment.

Fans and compressors: Enables smooth start and optimal speed regulation to avoid shocks and maintain energy efficiency.

Conveyors and automated systems: Ensures controlled acceleration to prevent jams or chain breaks.

Energy efficiency and durability:

Energy optimization: Reduces start-up current peaks for more efficient energy use and lower system losses.

Equipment longevity: By decreasing mechanical and electrical stresses, it extends motor life and lowers long-term maintenance costs.

Additional features:

Compact design: Like all Altistart 48 products, it is compact for easy integration into space-limited control panels.

Versatility: Suitable for a wide range of industrial applications, providing flexibility to meet specific user needs.

The Schneider Electric ATS480C32Y is an efficient and reliable soft starter for three-phase motors up to 32 kW. It provides smooth start and stop control, reducing current spikes and mechanical stresses to protect motors and extend equipment lifespan. This model is ideal for industrial applications including pumps, fans, compressors, and conveyors, enhancing energy efficiency while ensuring system safety and reliability.
