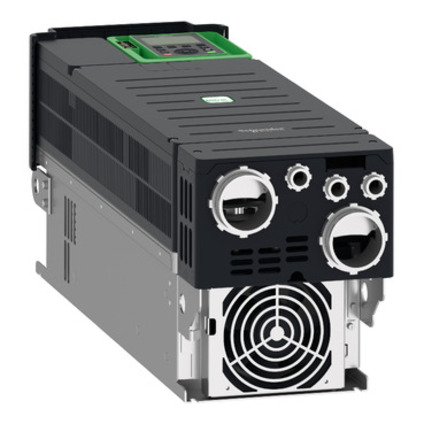

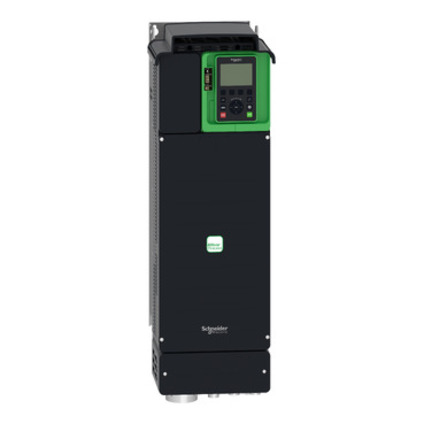

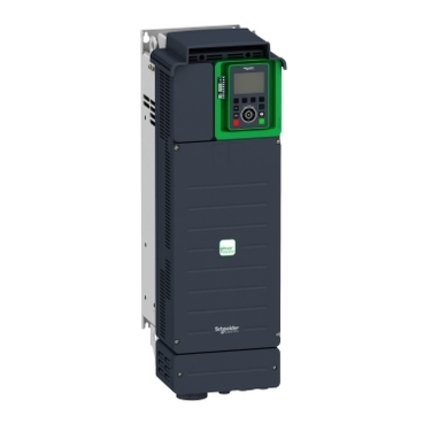

Altivar 930 - variable speed drive - 30 kW - 400/480V - with brake - IP21
ATV930D30N4 is a variable frequency drive (or frequency converter) manufactured by Schneider Electric, and is part of the Altivar 930 series. This range of drives is specifically designed for industrial applications requiring very precise motor control, especially in production environments where performance, reliability, and energy efficiency are critical.
Description
The ATV930D30N4 is designed to control three-phase motors in industrial applications such as pumps, compressors, fans, conveyor systems, and other production equipment.
It helps optimize energy management, reduce electricity consumption, and improve the lifespan of motor equipment.
Technical specifications:
Power: This model is intended for motors of 30 kW (approximately 40 horsepower).
Supply voltage: It operates on a 400 V three-phase network (input voltage typically between 380 and 480 V).
Nominal current: The drive supports a current of about 60.5 A.
Technology and features:
Vector control (V/F or sensorless vector control): Provides enhanced performance, especially more precise torque control even at low speeds, which is particularly important for variable load applications.
Energy management: The drive is designed for high energy efficiency, reducing electricity consumption and associated costs.
Advanced communication: This model easily integrates with industrial communication systems such as Ethernet/IP, Modbus, PROFINET, CANopen, BACnet, and other standard protocols used in industrial environments.
Applications and specific advantages:
The ATV930D30N4 is commonly used in applications requiring dynamic motor control, such as ventilation and air conditioning systems, compressed air management, pumping and irrigation, and industrial processes.
It is particularly suited for variable load applications where speed and torque fluctuations must be precisely controlled.
Thanks to its advanced control capabilities, the drive allows parameter adjustment to ensure optimal motor performance while minimizing mechanical wear and energy consumption.
Safety features:
Motor protection: The ATV930D30N4 offers various motor protections such as overload, short circuit, and overheating protection.
It also includes advanced safety functions to meet industrial safety standards, such as emergency stops and protections against network anomalies.
Ease of installation and maintenance:
This drive is designed for easy installation, featuring a user-friendly interface for quick configuration.
It also includes advanced diagnostic functions that facilitate maintenance by providing information on the status of the drive and the motors it controls.
Energy efficiency and durability:
Like all products in the Altivar 930 range, the ATV930D30N4 is designed to optimize energy consumption and help reduce operational costs, especially in energy-intensive environments.
Compactness and design:
The drive is compactly designed to fit easily into small spaces within control cabinets or industrial installations.
It offers increased reliability and long service life thanks to a robust design and optimized thermal management.
The Schneider Electric ATV930D30N4 is a high-end frequency drive suited for demanding industrial environments. It delivers exceptional motor control performance, improved energy efficiency, and easy integration into modern industrial communication systems. It is particularly useful for controlling 30 kW motors and helps optimize both energy consumption and system reliability.
