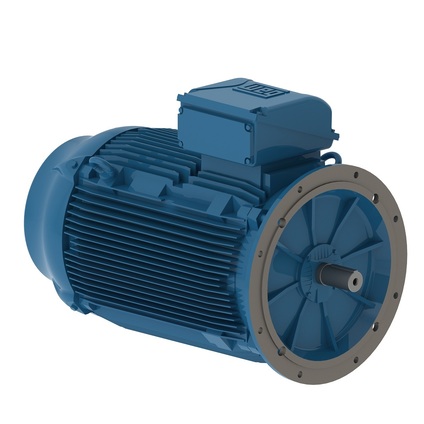

WEG electric motor – 2.2 kW, 4-pole, B30T, IE3, W22, 100L
WEG motors are electric motors manufactured by WEG S.A., a Brazilian company globally recognized for its electrical and industrial solutions. Founded in 1961, WEG is one of the largest manufacturers of electric motors worldwide and offers a wide range of products suited for various industries.
With a cast iron frame, flexible mounting options, solid and sturdy feet, and reduced operating temperatures, the W22 motors are perfectly suited for a wide variety of industrial applications and comply with the efficiency level according to IEC 60034-30-1 standard.
Description
The WEG 2.2 kW 4P B30T IE3 W22 100L motor is an asynchronous electric motor commonly used for industrial and commercial applications.
Power (2.2 kW):
This motor has a rated power of 2.2 kilowatts (kW), which is moderate power. This makes it suitable for applications such as pumps, fans, compressors, or machine tools in light to medium industrial environments.
Number of Poles (4P):
The motor is a 4-pole motor, meaning it runs at a synchronous speed of approximately 1500 revolutions per minute (rpm) at 50 Hz (the actual speed may be slightly lower depending on the load).
Protection Rating (B30T):
The B30T rating refers to the motor's enclosure. It is a motor with protection against dust and water splashes, designed to operate in moderate industrial environments. It is thus suitable for applications where conditions are relatively clean but where splashes or dust may be present.
Efficiency (IE3):
The motor is classified as IE3, meaning it is highly efficient in terms of energy consumption. This classification complies with European standards for high-efficiency motors. An IE3 motor consumes less energy and generates less heat, making it a durable and cost-effective choice for long-term use.
W22 Series:
This motor is part of the WEG W22 range, known for its high-efficiency, robust motors designed to operate in demanding industrial environments. W22 motors are also recognized for their reliability and low maintenance costs.
Frame 100L:
The 100L frame refers to the motor size, specifically its housing dimensions. The number 100 indicates the motor’s frame diameter, and the letter L indicates that it is designed for applications where mounting space may be limited but still provides satisfactory power capacity.
Common Applications:
This motor is typically used in pumps, compressors, fans, conveyors, and other industrial equipment requiring moderate power and high energy efficiency.
Advantages:
- High energy efficiency thanks to the IE3 rating, reducing operating costs.
- Reliability and robustness from WEG’s W22 series.
- Low maintenance costs due to optimized design.
- Suitable for moderate industrial environments, with adequate protection rating to withstand normal working conditions.
This motor is an excellent choice for industrial applications requiring moderate power, high efficiency, and long-term durability.
Features
Induction
