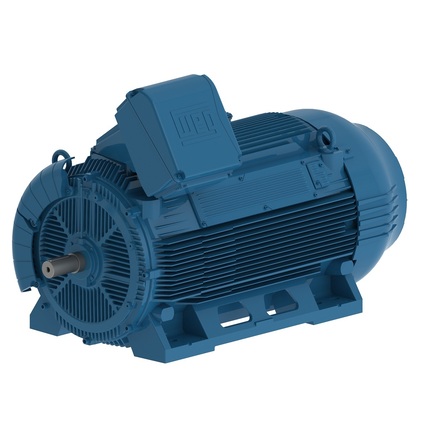

WEG electric motor – 375 kW, 6-pole, B3R(E), W50, 400J/H frame, 690V, 50 Hz, with 3 leads
WEG motors are electric motors manufactured by WEG S.A., a Brazilian company globally recognized for its electrical and industrial solutions. Founded in 1961, WEG is one of the largest manufacturers of electric motors worldwide and offers a wide range of products suited for various industries.
With a cast iron frame, flexible mounting options, solid and sturdy feet, and reduced operating temperatures, the W22 motors are perfectly suited for a wide variety of industrial applications and comply with the efficiency level according to IEC 60034-30-1 standard.
Description
The WEG 375 kW, 6-pole motor with B3R(E) mounting, W50 series, energy efficiency class 400J/H, 690 V at 50 Hz supply voltage, and 3-lead wiring is designed for demanding industrial applications requiring high performance and reliability.
Key Features:
Power and Speed: This motor delivers 375 kW of power with a rotational speed of 1,000 rpm, suitable for applications requiring lower speed and high torque.
Energy Efficiency: Rated 400J/H, it meets strict energy efficiency standards, helping to reduce energy consumption and operational costs.
Mounting and Design: The B3R(E) mounting indicates a motor with foot and flange mounting options, facilitating installation in various configurations. The W50 series is specially designed for intensive applications, offering optimal performance and increased reliability.
Voltage and Frequency: Designed for 690 V at 50 Hz power supply, this motor is suitable for standard industrial installations.
Protection and Insulation: With an IP55 protection rating, it is protected against dust and water jets, ensuring enhanced durability. Insulation class F allows a maximum operating temperature of 155°C, providing a safety margin for demanding operating conditions.
Wiring: The motor is equipped with 3-lead wiring, simplifying installation and maintenance.
Typical Applications:
- Pumps
- Fans
- Compressors
- Crushers
- Conveyor belts
- Mills and plants
- Centrifugal machines
- Presses
- Packaging equipment
These features make the WEG W50 375 kW motor a reliable and efficient choice for a wide range of industrial applications requiring high performance and long-term reliability.
Features
Induction
