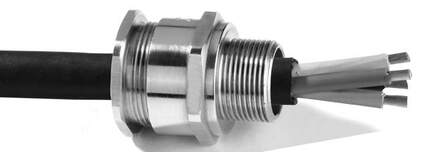

A2F Series Nickel Plated Brass Cable Glands - Increased Safety, Flameproof, Restricted Breathing and Dust Locations - For Unarmored Cables.
The A2F Series Nickel-Plated Brass Cable Glands for Unarmoured Cables are connection components used in electrical and industrial installations. They are designed to provide a secure entry point for unarmoured cables into enclosures or control cabinets, while offering protection against dust, water, and other external elements.
Description
Applications
- Cable glands for unarmored and exterior braid armor with protective
sheath cable certified for enclosures with the following protection modes:
— Ex d: flameproof IIB or IIC
— Ex e: increased safety
— Ex nR: restricted breathing
— D: dust environment
- Hazardous areas (gas and dust)
- Onshore and open-sea pipelines
Features
- Elastomer displacement seal for unarmored cable provides a combined flameproof and weatherproof seal on the outer sheath of the cable.
Standard Materials
- Body: nickel plated brass (suffix 5)
- Seal: LSF (Low Smoke Fume) thermoplastic elastomer
CEC Certifications and Compliances
- CSA Standard: C22.2 No 0,0.4, 94, 174, CAN/CSA-E60079-0,1,7,15
- CSA Certified: 1211841
ATEX/IECEx Certifications and Compliances
- Certification Type: Type A**
— Gas: Zones 1 and 2
– Type of Protection: Ex db eb IIC Gb, Ex nR IIC Gc
— Dust: Zone 20
– Type of Protection: Ex ta IIIC Da
- Conforming to ATEX 2014/34/EU: II 2G 3G 1D
- Ambient Temperature: -60 °C to +130 °C (-76 °F to +266 °F)
- ATEX Certificate: CML 18ATEX1321X, CML 18ATEX4313X
- IECEx Certificate: IECEx CML 18.0179X
- Index of Protection according EN/IEC 60529: IP66, IP67, IP68
- Impact Resistance : IK10
- Deluge Protection Compliance: DTS01:91
Features
Explosion-proof
Options - 316L stainless steel version: replace last digit 5 with 4 - Copperfree aluminum: replace last digit 5 with 1 - Shroud, locknut, earth tag, entry thread seal, serrated washers, adaptors and reducers: see Cable Gland Accessories pages
