Description

TYPICAL APPLICATIONS



  • Enclosed and gasketed fixtures suitable for use in a wide range of industrial, chemical processing and other areas where flammable gases and vapors are present, for example:



— Oil and Gas Refineries

— Petrochemical Plants

— Foundries

— Drilling Rigs

— Pulp and Paper Mills

— Food and Beverage Processing Facilities

— Loading Docks

— Power Plants

— Water and Wastewater Treatment Facilities

— Hydrogen and Biofuels plants

— LNG (Liquid Natural Gas) plants

— Other areas where corrosive, wet, dirty and tough environments are a problem

  • IP66/IP67, Type 4X, marine and wet locations. IP66 for IECEx/ATEX
  • Locations requiring dependable, consistent lighting in extreme hot/cold temperature environments.

— -40 °C to +65 °C (-40 °F to +149 °F) ambient temperature range.

— -40 °C to +55 °C (-40 °F to +131 °F) for high lumen AMLHL3 output.

— -55 °C (-67 °F) Cold Start option available for BU voltages only. See Catalog Numbering Guide for more details

  • Globally rated luminaires with all applicable certification labels for NEC/CEC and ATEX/IECEx environments.

See catalog page for details.





FEATURES



  • Six lumen outputs provide up to 38,000 lumens
  • Choice of optics for optimal light distribution in a variety of applications
  • Separate field wiring compartment with screw terminal block for easy and secure connection can accept 0.14 - 6 mm² (26 - 10 AWG) wire
  • Wiring compartment has two 3/4” NPT entries in bottom and one 3/4” NPT entry on top. Optional M20 metric adapter available

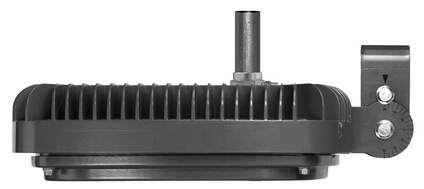

  • High Bay mounting achieved by using ¾” NPT threaded non-penetrating blind hold centered in top of luminaire with integral set screw. Wire via wiring compartment
  • Yoke bracket is designed to accommodate traditional Areamaster brackets and slipfitters for easy retrofit. Optional

stainless steel yoke bracket is available

  • Choice of color temperature (CCT): 5000K (70 CRI) cool white, 4000K (80 CRI) neutral white, 3000K (80 CRI) warm white, 1800K (70 CRI), or Amber (56 CRI)
  • 0-10 Vdc Dimming standard for all configurations. See catalog page for dimming and Group Lighting Controls details
  • Rugged and compact housing with superior thermal design translates to long luminaire life
  • Heavy duty, high temperature silicone rubber gaskets
  • Thermal shock and impact resistant clear or frosted glass lens
  • Standard 6 kV/3 kA surge protection. Optional 10 kV/5 kA additional surge protection available
  • Captive fasteners secure one piece lens
  • Field replaceable LED driver and lens cover
  • Photometric data and electronic drawings available upon request



NEC/CEC LISTINGS



  • Class I, Division 2, Groups A, B, C, D | Class II, Division 1,

Groups E, F, G | Class II, Division 2, Groups F, G | Class III |

Zone 20, 21 and 22 | Class I, Zone 2 AEx/Ex ec IIC Gc |

Zone 21, AEx/Ex tb IIIC Db | Type 3R, 4 and 4X | IP66/67 |

Simultaneous Exposure | Marine Outside Type (Salt Water)

for USA Only | Wet Locations

IECEX / ATEX LISTINGS



  • Zones 2 – 21 and 22

NOTABLE LISTINGS

  • CE
  • UKCA
  • UKEX
  • ABS Certified
  • DLC Listed
  • 10G Vibration – AMLG, 5G Vibration – AMLH

Features

Product range
Luminaire
Type of technology

Explosion-proof

Device name

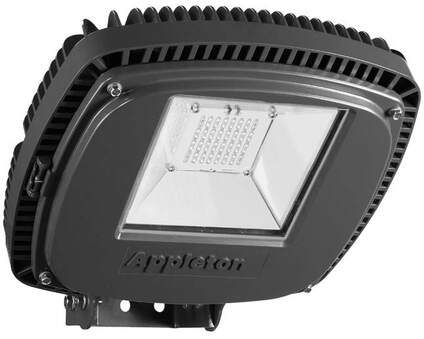

ATX™ AMLED - AREAMASTER floodlight
Tension
120-277 Vac, 50/60 Hz
Power
125/121 W
Nominal stream
1.10 - .047 A
Contractual guarantee
5 YEARS
Country of origin
FRANCE
