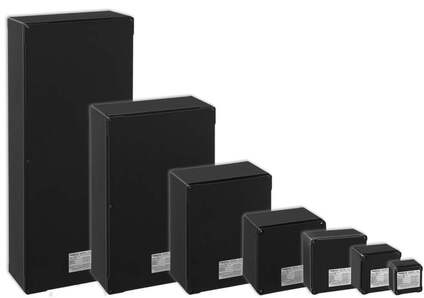

Appleton™ ATX™ JBEP Series Undrilled, Pre-Drilled, Empty FRP Junction Boxes - increased safety - Zone 1 et 2 – 21 et 22 - Gaz (G) and dust (D)

Applications

• Designed for Zones 1 or 2 areas, where flammable gases or vapors are present either continuously, often or accidentally such as:

— Petroleum

— Chemical

— Refineries

— Other industrial process facilities

• Ideal for indoor/outdoor use with wet or corrosive atmospheres.
• Designed for use in Zones 21 or 22 areas where flammables dusts (conductive and non conductive) are present either continuously, often or accidentally such as:

— Food processing

— Dairy

— Brewing

— Other industrial process facilities

Features

• Available in a wide range of sizes:

— For armored or unarmored cable with appropriate ATEX/IECEx certified cable glands

— For use with Mantle Clamping (Pillar Terminals) for use as instrumentation, electrical or power terminals

— For use with a variety of connection and earth terminals

• Refer to the terminal tables to determine the permitted size and quantity of terminals.

Standard materials

• Enclosures: Static resistant carbon filled fiberglass reinforced polyester (FRP)
• Hardware: stainless steel
• Gasket: silicone

ATEX/IECEx Certifications and Compliances

• Certification Type: JBEP

— Gas, Zones 1 and 2:

– Conforming to ATEX 2014/34/EU: II 2 G

– Conforming to IECEx: EPL Gb

– Type of Protection: Ex eb IIC, Ex eb ia IIC, Ex eb ib IIC, Ex ia or ib IIC

– Temperature Class: T6

— Dusts, Zones 21 and 22:

– Conforming to ATEX 2014/34/EU: II 2 D

– Conforming to IECEx: EPL Db

– Type of Protection: Ex tb IIIC

– Surface Temperature : T68 °C (T154.4 °F)

• Ambient Temperature: -55 °C à +55°C (-67 °F à +131 °F)
• ATEX Certificate: LCIE 12 ATEX 3037X
• IECEx Certificate: IECEx LCIE 13.0003X
• Index of Protection according EN/IEC 60529: IP66

INMETRO Certifications

• INMETRO Certificate: BVC13.3238-X
