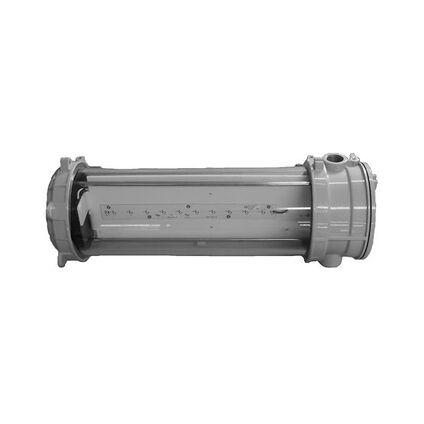

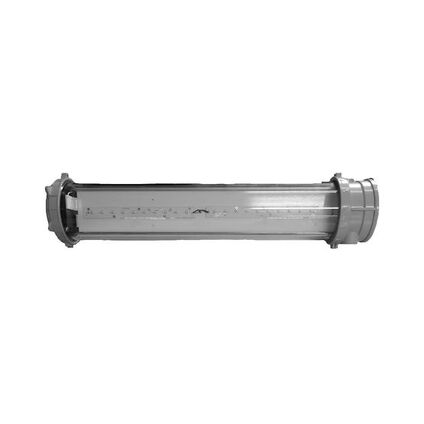

ATX™ FDLED series luminaires- standard or with emergency battery backup — Flameproof Zones 1 et 2 - 21 et 22 - Gaz (G) et dust (D)
The Emerson FDLED Series tubular LED luminaires are designed to provide high-quality lighting in industrial and commercial environments, with a particular focus on safety and energy efficiency. These luminaires are often used in demanding settings where reliability and durability are essential.
Description
Applications
- Can be installed in hazardous areas designated as Zone 1 and 2 – 21 and 22.
- For use in locations where a high degree of corrosion resistance is required.
- For indoor/outdoor use where protection against dirt, water and moisture is necessary
- Oil refineries
- Petrochemical facilities
- Pulp and paper, mills
- Painting, sewage and water treatment facilities
- Warehouses
- Underground tunnels
- General manufacturing facilities
- Hydrogen and Biofuels plants
- LNG (Liquid Natural Gas) plants
FEATURES
- Impact resistant borosilicate glass sealed tube.
- Easy access to LED array through gray painted aluminum threaded entry cap.
- Supplied with O-ring for improved ingress protection.
- Corrosion-resistant gray painted aluminum.
- Supplied with energy efficient electronic driver on a removable gear tray.
- Supplied with external and internal ground/earth connection.
- Fixture supplied with one M20 blanking plug.
- Easy connection to wire and disconnect with plug-in terminal blocks.
- IPX8 compliant at a depth of 10 meters (33 feet), duration 30 min.
LUMINAIRE MATERIALS
- End caps and cover: aluminum
- Glass tube: tempered borosilicate glass
- O-ring gasket: nitrile (NBR)
- Internal reflector: aluminium
- Mounting accessories: several accessories in different material such as zinc plated steel, galvanized steel or 316
stainless steel
Certification ATEX/IECEx
- Certification Type: FDLED
— Gaz: Zones 1 et 2
– ATEX conformity : 94/9/CE: II 2 G
– Protection:

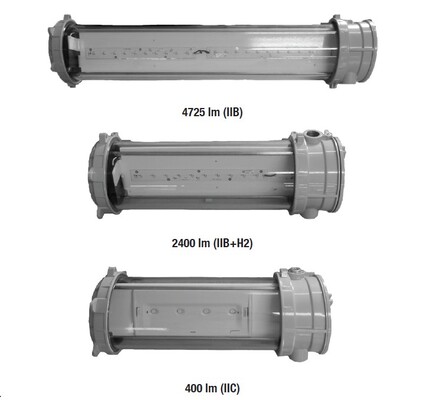

Ex d IIB (version 4725 lm)
Ex d IIB+H2 (version 2400 lm)
Ex d IIC (version 400 lm)
– Temperature class : T6
— Dust : Zones 21 et 22
– ATEX conformity : 94/9/CE: II 2 D
– Protection: Ex tb IIIC
– Température :
+75 °C (verison 400 lm)
+80 °C (verisons 2400 et 4725 lm)
— Ambient Température : -30 °C à 60 °C
— Déclaration de conformité CE: 50312
— Certificat ATEX: INERIS 15 ATEX 0042X
— Certificat IECEx: IECEx INE 15.0046X
— Indice de Protection suivant EN/IEC 60529: IP66/68
— Résistance mécanique:
IK09 (versions 400 et 2400 lm)
IK08 (version 4725 lm)
— Volume interne: > 2 dm3 - 2 litres
Features
Explosion-proof
230V - 50Hz AC version 400 lm
BU - 110V à 254V,
50/60 Hz version 2400 et 4725 lm
OPTIONS - Diffused polycarbonate lens - Ta -40 °C (-40 °F) IP66/68 (with gasket)
