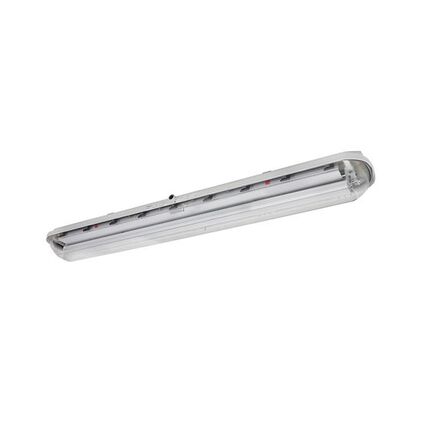

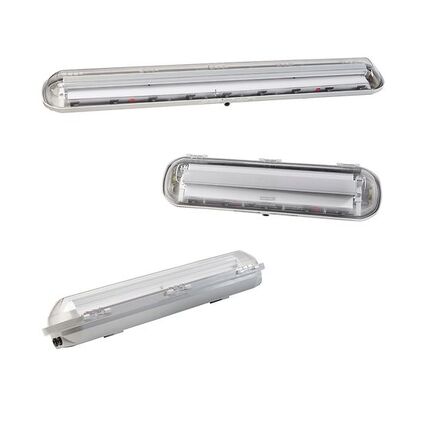

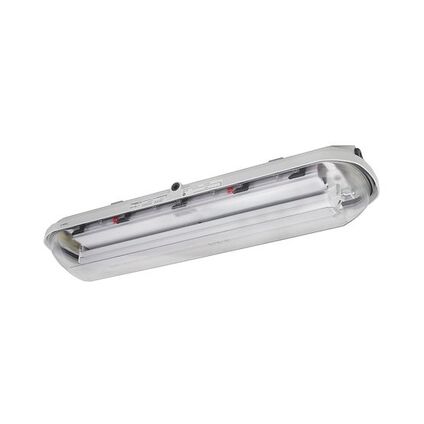

ATX™ FELED Series Non-Metallic LED Luminaires 3,000 lumens M20 - Standard or Emergency battery - Increased Safety - ATEX/IECEx: Zones 1 and 2 – 21 and 22

Applications

• For use in locations where:

— Hazardous areas are designated as Zone 1 and 2 – 21 and 22

— A high degree of corrosion resistance is required

— Protection against dirt, water and moisture is necessary

• Typical applications include:

— Oil refineries

— Petrochemical facilities

— Food processing plants

— Waste and water treatment plants

— Underground tunnels

— General manufacturing facilities

Features

• Easy to retrofit in same mounting footprint as Appleton’s FE series nonmetallic fluorescent luminaires
• Full range of lumen outputs, with light distribution equivalent to Appleton’s FE series fluorescent luminaires
• Corrosion-resistant fiberglass reinforced polyester body and hinged polycarbonate lens.
• High impact resistance housing (20 Joules – IK10) from -40 °C/-30 °C to +50 °C/+55 °C (-40 °F to +131 °F) ambient

temperature and wind profile for use in extreme offshore and onshore environments.

• 60,000+ hour LED life for years of maintenance free operation.
• Lightweight design, hinged cover with captive screws, and terminal block wiring for easy installation and maintenance.
• Standard screw-type terminal block can accept 1 to 6 mm2 wire.
• Contemporary, low profile design suitable for tight spaces
• Field replaceable LED driver and lens.
• Industry-leading thermal management for safe, reliable operation over wide temperature range.
• M20 plug or M25 plug provided.
• Universal, high efficiency, multi-tap drivers cover voltage requirements for 100-240 Vac, 50/60 Hz +/- 10%.
• High power factor electronic ballast (>0.95).
• Standard 2KV surge suppression.
• Latch assembly and elastomer gasket seals against water and dust ingress, IP66/67.
• Easily accessed for maintenance using Allen key or straight blade screwdriver.
• Central opening with unique patented release system to prevent damage.
• Can be horizontally or vertically mounted.
• Positive safety switch disconnects power to LED’s and driver to allow maintenance in hazardous locations.
• Available in 3 hour emergency version, including built-in monthly self- test. Test results through multi-colored LED
• Ex e battery with plug-in connector.

Standard Materials

• Housing: fiberglass reinforced polyester
• Lens: polycarbonate
• Gasket: elastomer
• Internal reflector: highly reflective white powder coated

aluminum

• Mounting accessories available in different materials such as

gray painted aluminum, zinc plated steel, galvanized steel or

316 stainless steel

ATEX/IECEx Certifications and Compliances

• Certification Type: FELED

— Gas: Zones 1 and 2

– Conforming to ATEX 2014/34/EU: II 2 G

– Type of Protection: Ex db eb mb IIC

– Temperature Class: T6 to T4

— Dust: Zones 21 and 22

– Conforming to ATEX 2014/34/EU: II 2 D

– Type of Protection: Ex tb IIIC Db

– Surface Temperature: +78 °C to 96 °C (172 °F to 205 °F)

• Ambient Temperature: -40 °C/-30 °C up to +50 °C/+55 °C

(-40 °F/-22 °F up to 122 °F/ +131 °F)

• EU Declaration of Conformity: 50317
• ATEX Certificate: LCIE 16 ATEX XXXX
• IECEx Certificate: IECEx LCIE 16 XXXX
• Index of Protection according EN/IEC 60529: IP66/67
• Impact Resistance (shock): IK10
