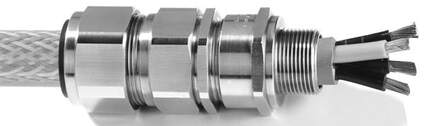

E1FX Series Nickel Plated Brass Cable Gland - Increased Safety, Flameproof, Restricted Breathing and Dust Locations - For Armoured Cables (Braid, Tape).

Applications

• Cable gland for armored cables (braid, tape, tape with lead sheath)

certified for enclosures with the following protection modes:

— Ex d: flameproof IIB or IIC

— Ex e: increased safety

— Ex nR: restricted breathing

— D: dust environment

• Hazardous areas (gas and dust)
• Onshore and offshore

Features

• Cable gland with elastomer seal for use in hazardous areas with braided

and tape armor cable.

• The cable gland allows mechanical cable retention and earth continuity

via cable armor termination.

• A detachable armor cone and AnyWay clamping ring arrangement

facilitates remote make off and enables cable to be disconnected from

the equipment.

• Inspection of the armor can be carried out while still maintaining the

protection mode of the enclosure.

Standard Materials

• Body: nickel plated brass
• Seal: SOLO LSF (low smoke and fume) halogen free thermoset elastomer

NEC/CEC Certifications and Compliances

• cCSAus Certified: 1310517

ATEX/IECEx Certifications and Compliances

• Certification Type: Type E**

— Gas: Zones 1 and 2

– Type of Protection: Ex db eb IIC Gb, Ex nR IIC Gc

— Dust: Zone 20

– Type of Protection: Ex ta IIIC Da

• Conforming to ATEX 2014/34/EU: II 2G 3G 1D
• Ambient Temperature: -60 °C to +130 °C (-76 °F to +266 °F)
• ATEX Certificate: CML 18ATEX1324X, CML 18ATEX4316X
• IECEx Certificate: IECEx CML 18.0181X
• Index of Protection according EN/IEC 60529: IP66 (IP67, IP68 available

on request)

• Impact Resistance: IK10
• Deluge Protection Compliance: DTS01:91 (available on request)
