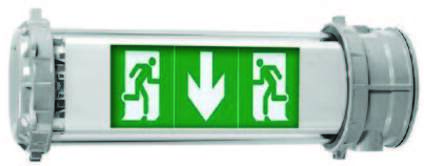

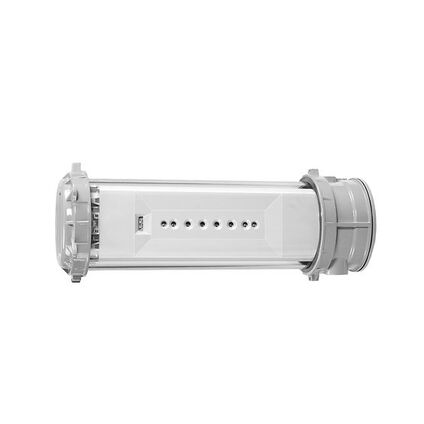

FDBAES LED Series: Self-contained Emergency Lighting Units - Emergency egress - flameproof - hazardous location : Zones 1 and 2 - 21 and 22 - Gas (G) and Dust (D)

TYPICAL APPLICATIONS

• Provides adequate lighting and/or visual indication of access on exit routes during an evacuation in a hazardous

environment.

• Can be installed in hazardous areas designated as Zone 1 and 2 –21 and 22.
• Typical applications include:

— Oil refineries

— Petrochemical plants

— Pulp and paper mills

— Hydrogen and Biofuels plants

— LNG (Liquid Natural Gas) plants

FEATURES

• All versions:

— Power supply 230 Vac, 50/60 Hz

— 1 hour duration (emergency)

— Threaded access cover with O-ring seal

— Can be maintained in hazardous areas as an internal switch cuts off battery supply automatically once the cover is unscrewed and opened

— Battery pack

— Escape route lighting: 2.4 V - 1.5 Ah (2 cells - Nicd) Space lighting: 7.2 V - 2.2 Ah (6 cells - NiMh) - Flameproof

— Padlockable switch is available on switched models which individually cuts off power supply and remote control

— Charge indicator by 1 green LED (life time over 10 years).

— Operates in any position

— Connection to plug-in terminal block via 2 x 5 x 2.5 mm2 (0.003 x 0.008 x 0.004 in2) terminals

— Supplied with two fixing lugs

— Reported L70 is >330 000 hours at +25 °C

— Automatic built-in self-test system (SATI) with memorization of tests indicated by LEDs

— Using a microprocessor and an internal clock, the unit will carry out automatic tests

— Weekly test: Lamp check during 6 seconds

— Quarterly test: Emergency operation and lamp check for 1 hour

— Can be remotely controlled and checked without switching the mains off with remote control unit from Legrand (Catalog Number 03901) or URA (Catalog Number 095448 and 095450) manufacturers

— The remote control unit installed in a safe area or inside a flameproof box allows manual ignition of all the units (maximum 300 units) for visual inspection of their operation

— Escape route lighting: 55 lumens, 0.50 wattage. Space lighting: 540 lumens, 0.95 wattage

— Correlated Color Temperature: 5700K

- Addressable versions

— Operates without additional control lines. Communication between units and the control system is realized via mains borne signals that utilize the existing electrical wiring

— Standard control system capacity: one control system for up to 200 emergency lighting units

— Optional increased control system capacity: booster (repeater unit) is used to increase the length of the network allowing up to 1000 emergency lighting units to be on one control system. This allows for the use of a single computer to centralize the management of the facilities emergency lighting system. For more information, contact your local sales representative

LUMINAIRE MATERIALS

• End caps and cover: aluminum
• O-ring seal: nitrile
• Lens: tempered borosilicate glass
• Fixing brackets: zinc plated steel or 316 stainless steel
• Accessories: white painted galvanized steel
• Guard: zinc plated steel

Certification ATEX/IECEx

• Certification Type: FLd

— Gaz: Zones 1 - 2

– Conformité ATEX 94/9/CE: II 2 G

– Type de Protection: Ex d IIC

– Classe de Température: T6

— Poussières: Zones 21 - 22

– Conformité ATEX 94/9/CE: II 2 D

– Type de Protection: Ex tD A21

– Température de surface: T80 °C

— Température ambiante: -40 °C à +55 °C

— Déclaration de Conformité CE: 50203

— Certificat ATEX: LCIE 97 ATEX 6012

— Certificat IECEx: IECEx LCI 04.0018

— Indice de Protection suivant EN/IEC 60529: IP66/68

— Résistance mécanique: IK08

— Volume interne: > 2 dm3 (2 litres)

— Conformité NF AEAS
