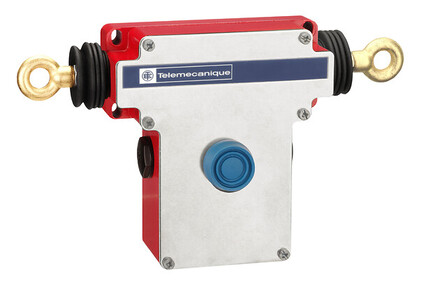

Dual emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e 2x(1NC+1NO), Pg13.5, boot. Pb
Dual emergency stop rope pull switch allows for quick and easily accessible emergency shutdown.
It is designed to ensure machine safety by enabling emergency stopping over long distances.
Description
Switch type: Dual emergency stop rope pull switch - model, XY2CED.
Contacts: Equipped with two normally open (NO) contacts and two normally closed (NC) contacts.
Maximum cable length: Designed for red galvanized steel cables, 5 mm in diameter, with a maximum length of 100.5 meters.
Dimensions: Without tensioner, the device measures 120 mm in height, 90 mm in width, and 60 mm in depth.
Protection rating: IP66, ensuring protection against dust and water jets.
Operating temperature: Operates efficiently between -25°C and +70°C.
Limit switch spring: Equipped with a limit switch spring for precise cable tension adjustment.
This switch is ideal for applications requiring wide coverage, such as conveyors or long production lines.
For more details, please refer to the official datasheet from Telemecanique Sensors.
Features
Rope Pull Switch
