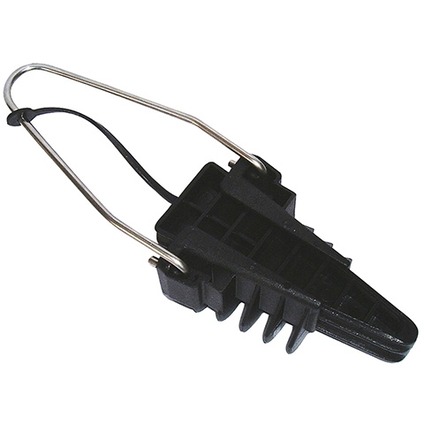

Adjustable anchoring clamp for low voltage (LV) overhead service connection
Reference
K307
Brand
Download the technical sheet :
These products are used for securing twisted insulated conductors on low voltage overhead networks.
An angle bracket is also available to complete the range.
Description
The body is made of UV-resistant, fiberglass-reinforced synthetic material.
The wedge is made of UV-resistant synthetic material. Four grooves ensure the anchoring of 2 or 4 conductors by distributing the load while protecting the insulation. It is connected to the bail via its integrated link.
The bail and hook offer good corrosion resistance: stainless steel.
The hook is adjustable in position (rack system with a 10 cm travel).
All components are captive (non-removable).
The tensile strength is 200 daN.
Features
Product range
Anchoring clamp
Type of technology
UV-protected thermoplastic
Device name
PA25
Nominal section
2x16 to 4x25 mm²
Contractual guarantee
1 YEAR
Country of origin
FRANCE
