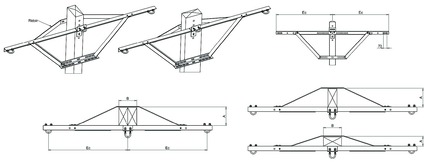

Dead end single crossarm - H61E

Role and Function of Dead End Single Crossarm H61E:

Fixing and Supporting Conductors:

Dead end single crossarms are used to hold the electrical line conductors securely in place. They are installed at specific anchoring points on pylons or supporting structures, ensuring that the cables remain under tension in a stable and secure position. The H61E crossarms are particularly suited for installations where simple anchoring is sufficient to withstand the forces exerted on the conductors.

Transmission of Forces:

These crossarms transmit the mechanical forces and tension from the conductors to the pylons or supporting structures. They must be designed to withstand tensile stresses and environmental effects such as wind, snow, and other weather conditions that influence cable tension.

Simplicity and Efficiency:

The H61E model is characterized by its simple design and effectiveness in fixing conductors. Unlike more complex anchoring systems, H61E crossarms provide a robust yet relatively straightforward solution, ideal for installations where simplicity suffices but reliability is paramount.

Durability:

Like most equipment in electricity transmission systems, H61E crossarms are built to resist harsh climatic conditions. They are generally made from corrosion-resistant materials, such as galvanized steel, to ensure long service life even in environments exposed to weather and humidity.

Reduced Maintenance:

Thanks to their simple and sturdy design, H61E crossarms require minimal maintenance after installation. This helps reduce long-term infrastructure management costs.

Applications:

Dead end single crossarms H61E are mainly used in power transmission networks, especially in overhead lines where pylons are spaced apart and the forces on conductors do not justify more complex or multiple anchoring systems. They are common in medium- to high-voltage lines, particularly for connections between urban or industrial zones, or in regions where network stability is a key reliability factor.

Conclusion:

In summary, dead end single crossarms H61E offer a reliable and economical solution to ensure anchoring and stability of conductors in overhead power networks. Their simple yet robust design effectively maintains cables under tension while providing high durability and minimizing maintenance needs.
