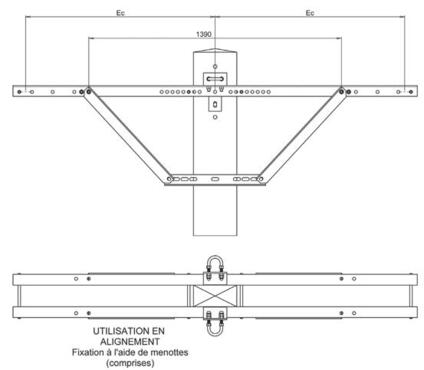

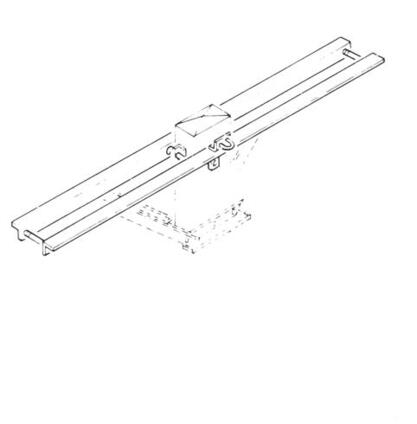

Double dead end crossarm - TADE

Role and Function of Double Dead-End Crossarms TADE:

Anchoring for Multiple Conductors: As the name suggests, the TADE double dead-end crossarm is specifically designed for installations where two (or more) conductors must be supported simultaneously on a single structure. It is ideal for overhead line networks requiring secure fastening of multiple electrical cables.

Force Transmission: These crossarms serve to transfer the tensile forces exerted by the conductors to the pylons or other supporting structures. This allows for the mechanical loads to be distributed across two points, ensuring better management of the tension applied to the cables.

Stability and Safety: TADE crossarms provide greater stability for overhead lines. By offering a more robust anchoring system for two conductors, they help prevent the risk of disconnection or cable movement due to external forces such as wind, snow, or the pulling force of the transmitted energy.

Durability and Resistance: TADE double dead-end crossarms are generally made of galvanized steel or other corrosion-resistant materials to ensure long service life even in harsh environments. They are designed to withstand extreme weather conditions, such as rain, humidity, or intense heat.

Adaptability: This type of crossarm is flexible and can be used in a variety of overhead line configurations. It is suitable for high-voltage installations where multiple conductors need to be fastened to the same anchoring structure, whether for transmission or distribution lines.

Reduced Maintenance Costs: Thanks to their robust and durable design, double dead-end crossarms require minimal maintenance. This reduces infrastructure management and operating costs, as these crossarms are reliable and do not require frequent repairs.

Applications of TADE Double Dead-End Crossarms:

TADE crossarms are mainly used in electricity transmission lines and high and extra-high voltage distribution networks, where multiple conductors must be supported on a single overhead line. They are particularly useful in installations with long spans and widely spaced pylons.

For example, these crossarms can be used in installations connecting substations, power plants, or in areas where several lines must be installed in parallel.

TADE double dead-end crossarms offer a reliable and effective solution for anchoring multiple conductors in overhead electrical systems. They are ideal for ensuring the stability and safety of high-voltage lines while minimizing the risks of premature wear or failure. Their design allows for easy installation, low maintenance, and long-term durability, making them an essential component for the efficient operation of complex electrical networks.
