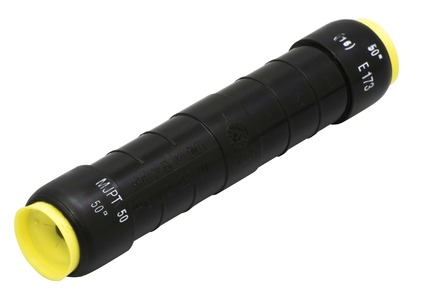

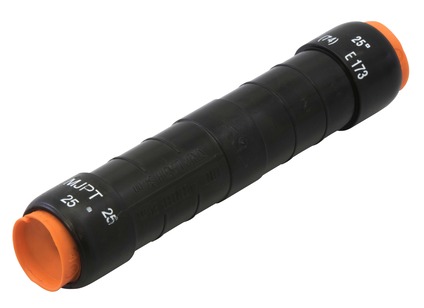

Pre-insulated aluminum joint sleeve

Cable insulation continuity is ensured by a compression-resistant sheath and sealing joints (certification test for insulation: 6 kV in water for one minute).

The sealing of the connection allows for Al/Al, Al/Cu, and Cu/Cu joints.

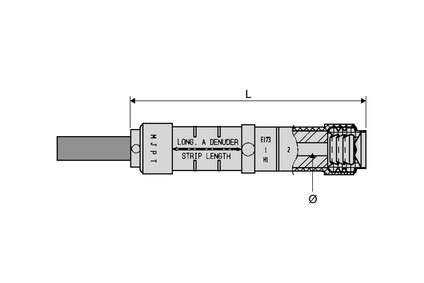

The sleeve indicates:

• The number and order of crimps to be made,
• The length to strip from the conductors (with a sharp edge for sheath marking),
• The conductor cross-section,
• The die to use.

A color-coded sealing cap enables quick identification of the conductor size.

Installation: hexagonal crimping.
