Description

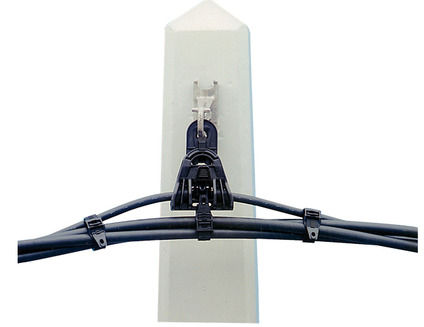

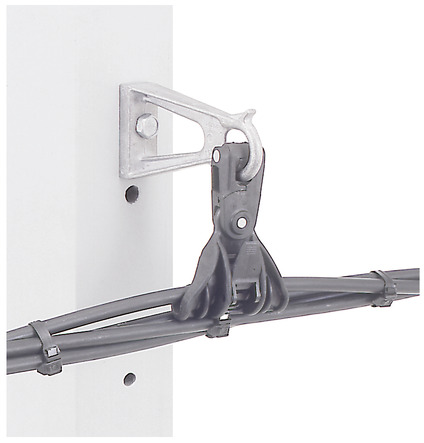

This assembly consists of:

  • A CS 14 or CS 14-2000 bracket.
  • A mobile link: Allows longitudinal and transverse movement of the clamp body. Made from high-strength insulating material with excellent resistance to environmental agents and aging. Provides significant additional insulation between the support and the cable.
  • A suspension clamp made from the same insulating material as the mobile link. Secures and locks the load-bearing neutral using a notched toggle mechanism. Clamping capacity: 8.5 to 17 mm.

Features

Product range
preassembled Suspension
Type of technology

UV-protected thermoplastic

Device name
ES1500
Nominal section
8,5 to 17 mm
Contractual guarantee
1 YEAR
Country of origin
FRANCE
