CHE-F 24kV – 50–240mm² Outdoor Single-Core Termination kit - For single-core cables with synthetic insulation

Reference
194064
Brand
logo cellpack

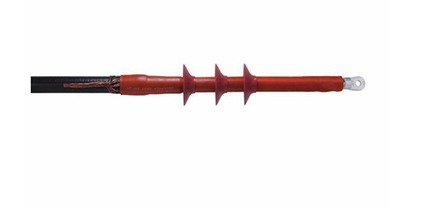

Hybrid CHE-F Termination kit

Suitable for connections of all single-core cables with synthetic insulation (PVC, PE, XLPE, EPR), with various types of semiconductive layers (graphite, extruded, peelable or non-peelable), and different types of shields. For crimp or screw terminals.

Features:

  • Reliable control of the electric field under all application conditions, thanks to silicone field distribution elements with permanent elasticity
  • Combination of slip-on and heat-shrink components
  • Wide range of section sizes
  • Fast, simple, and safe installation
  • Immediate commissioning
  • Outdoor use

Request information

Technical sheet

Description

Application/Compatibility



  • Outdoor

Voltage Level



  • U/U (Um) 6/10 (12) kV – 19/33 (36) kV

Note



  • For cables with Um = 7.2 kV, terminations from the Um = 12 kV series must be used.

(Please verify the minimum insulation diameter – Ø1.)

Standard



  • CENELEC HD 629.1 (DIN VDE 0278, Part 629-1)

Storage/Shelf Life



  • Unlimited shelf life

Features

Product range
Single-core Termination Kit
Type of technology

heat-shrinkable

Device name
CHE-F
Tension
24 KV
Nominal section
50 - 240 mm²
Equipment included

1 Set for 3 phases Heat shrinkable tubing resistant to circulating current, Field distribution elements in silicone, Silicone skirts, Sealant mastic tape, Mounting materials, Assembly instructions. Optional accessory: Lugs (see Connectors) Earthing fitting type EGA for cables with foil shields.

Contractual guarantee
1 YEAR
Country of origin
GERMANY
