CHE-I - 24kV - 50–240mm² Indoor Single-Core Termination kit - For all single-core cables with synthetic insulation

Reference
194041
Brand
logo cellpack

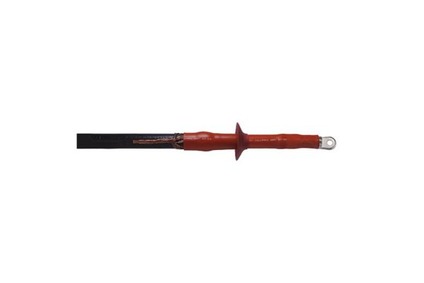

Hybrid CHE-I Terminations kit

Suitable for connections of all single-core cables with synthetic insulation (PVC, PE, XLPE, EPR), with various types of semiconductive layers (graphite, extruded, peelable or non-peelable), and different types of shields. For crimp or screw terminals.

Features:

  • Reliable electric field control under all application conditions, thanks to silicone field-shaping components with permanent elasticity
  • Combination of slip-on and heat-shrinkable components
  • Wide range of cable sizes
  • Fast, simple, and safe installation
  • Immediate commissioning

Request information

Technical sheet

Description

Application/Compatibility

  • Indoor

Voltage Level

  • U0/U (Um) 6/10 (12) kV – 19/33 (36) kV

Note

  • For cables with Um = 7.2 kV, terminations from the Um = 12 kV series must be used.

(Please check the minimum insulation diameter – Ø1.)

Standard

  • CENELEC HD 629.1

(DIN VDE 0278, Part 629-1)

Storage/Shelf Life

  • Unlimited storage time

Features

Product range
Single-core Termination Kit
Type of technology

heat-shrinkable

Device name
CHE-I
Tension
24 KV
Nominal section
50 à 240 mm²
Equipment included

1 Set for 3 phases Heat-shrinkable sheath resistant to tracking current, Field distribution elements in silicone, silicone skirts, Sealant mastic tape, Mounting materials, Assembly instructions. Optional accessory: Lugs (see Connectors), Earthing fitting type EGA for cables with foil shields (see Connectors).

Contractual guarantee
1 YEAR
Country of origin
GERMANY
