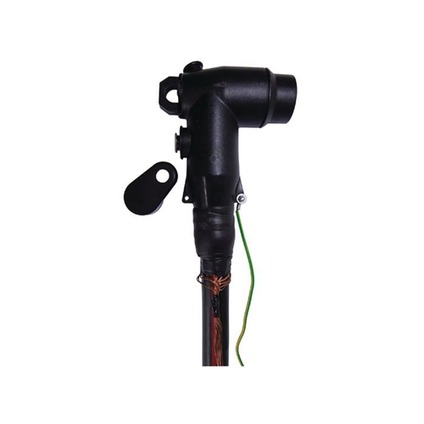

CWS 250A – 24kV – 250A – 16–95mm² Elbow Separable Connector – Indoor Use - For all single-core cables with synthetic insulation, for type A external cone systems

Reference
295167
Brand
logo cellpack

Cellplux CWS Right-Angle Separating Connectors kit

Suitable for connections of all single-core cables with synthetic insulation (PE, XLPE, EPR), with various types of semiconductive layers (graphite, extruded, peelable or non-peelable), and different types of shields (wires or tape), for distribution installations and transformers, for a maximum network voltage of 24 kV, on fixed parts of type A according to EN 50180 and EN 50181.

Features:

  • With capacitive measurement point
  • Individually tested
  • Safety in case of contact thanks to the external layer in semi-conductive EPDM
  • External sheath testing possible while connected
  • For copper and aluminum conductors
  • Quick, simple, and safe installation
  • Multi-sections thanks to the integrated screw terminals

Request information

Technical sheet

Description

Application/Compatibility



  • Indoor

Voltage Level



  • U0/U (Um) 6/10 (12) kV – 12.7/22 (24) kV

Standard



  • CENELEC HD 629.1 (DIN VDE 0278, Part 629-1)

Storage/Shelf Life



  • Unlimited shelf life



Features

Product range
Right-Angle Separating Connectors kit
Device name
CWS
Tension
24 KV
Nominal stream
250 A
Nominal section
16 - 95 mm²
Equipment included

Set of 3 separable connectors Field distribution elements in silicone, Earthing fitting, Screw lugs for main conductor, Mounting materials, Assembly instructions. Optional accessory: Earthing fitting type EGA for cables with foil shields (see Connectors).

Contractual guarantee
1 YEAR
Country of origin
GERMANY
