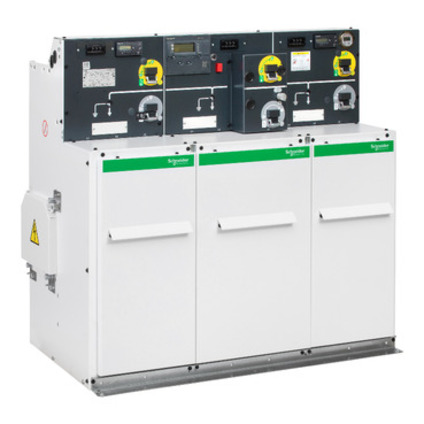

HN IPI non extensible (NE-IPI) RM6 - 24kV Internal 0,7 seconde
Reference
DPPB000251
Brand
Download the technical sheet :
RM6 integrates all medium-voltage functions into a compact unit, enabling the connection, supply, and protection of transformers on a radial or open-loop network:
via switch-fuse combinations, up to 2000 kVA
via circuit breaker with protection chain, up to 8000 kVA
The entire switchgear and busbar system is enclosed in a sealed-for-life, gas-tight enclosure filled with SF6 gas.
Description
RM6 HN IPI 15–20 kV JDB 400 A – IAC 12.5 kA / 0.7 s
RM6 COMPACT switchboard: 2 Switch-Disconnectors (I) + 1 Switch-Fuse combination without striker (P)
Both I and P functions are NOT MOTORIZED
Fuses (UTE standard) to be ordered separately
NOT EXTENDABLE
Not motorized
Features
Product range
RM6
Type of technology
Gas-insulated switchgear (insulation and breaking)
Device name
IPI
Tension
24kV
Nominal stream
400 A
Nominal section
1 x single-core connector per phase, 25–240 mm² (I)
1 x single-core connector per phase, 16–95 mm² (P)
1 x single-core connector per phase, 16–95 mm² (P)
Equipment included
3x Voltage Presence Indicator System (VPIS)
Contractual guarantee
18 MONTHS
Country of origin
FRANCE
