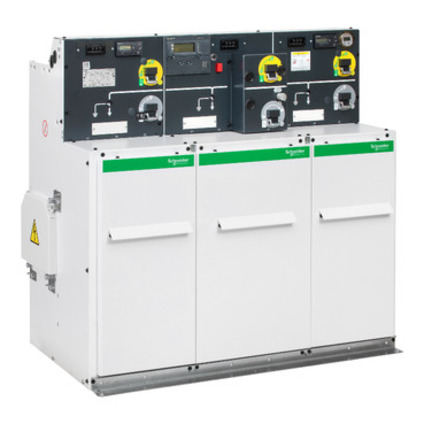

HN IQI non extensible (NE-IQI) RM6 - 24kV Internal arc 0,7 seconde
RM6 integrates all medium-voltage functions into a compact unit, enabling the connection, supply, and protection of transformers on a radial or open-loop network:
via switch-fuse combinations, up to 2000 kVA
via circuit breaker with protection chain, up to 8000 kVA
The entire switchgear and busbar system is enclosed in a sealed-for-life, gas-tight enclosure filled with SF6 gas.
Description
RM6 NE IQI C13100 10.1–20 kV JDB 400 A, IAC 12.5 kA / 0.7 s
RM6 COMPACT switchboard: 2 x switch-disconnectors 400 A (I) and 1 x switch-fuse combination 200 A (Q)
Functions I and Q non-motorized with 230 V AC MX trip coil + auxiliary contacts on Q function / 12.5 kA / 0.7 s
UTE-standard fuses to be ordered separately
NON-EXTENDABLE
Features
Gas-insulated switchgear (insulation and breaking)
3x Voltage Presence Indicator System (VPIS)
