TIPI – Power and Information Interface Panel TIPI 8-1200A
Reference
NX2008858
Brand
Download the technical sheet :
The TIPI distribution panels ensure the protection and dispatching of the low-voltage (BT) distribution network downstream from the HTA/BT substations of 630 kVA.
It is installed in indoor HTA/BT substations, connected downstream of a 400 kVA or 630 kVA power transformer, and includes:
- An incoming unit consisting of the switch and the short-circuiter.
- A set of isolated busbars connected downstream of the switch.
- A public lighting unit.
- A unit for internal circuit departures.
- A neutral terminal.
- Test sockets and Voltage Absence Verification (VAT).
Description

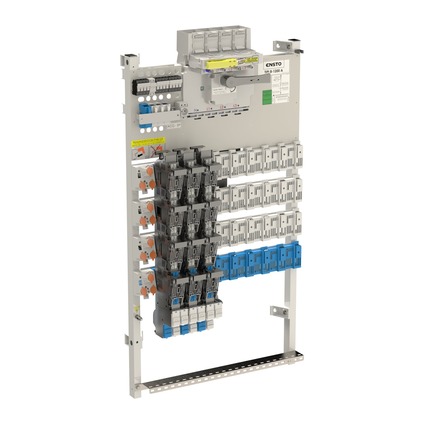

The TIPI 8-1200A panel is made up of the following main components:
- Incoming unit consisting of the switch and the short-circuiter.
This unit is located at the top of the panel, in the central position.
- Set of isolated busbars connected downstream of the switch, providing power to the busbars intended to receive the TIPI Monoblocs departures and the refeeding connections.
The busbars are protected to meet the IP2X protection rating.
- At the top left of the panel: the public lighting unit and the unit for the departure of internal circuits.
- At the bottom left of the panel: a neutral terminal associated with the neutral busbar, and the M12 grounding stud for the panel.
- Test sockets and Voltage Absence Verification (VAT): Located upstream and downstream of the switch, as well as on the neutral busbar (at the bottom left).
Features
Product range
TIPI
Device name
TIPI 8-1200A
Tension
400 V
Nominal stream
1200 A
Contractual guarantee
1 YEAR
Country of origin
FRANCE
