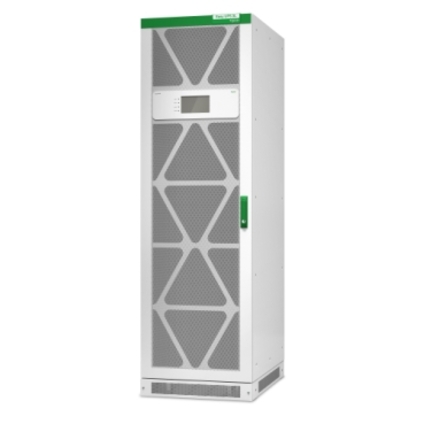

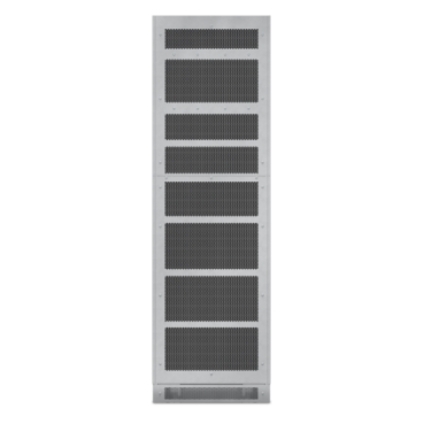

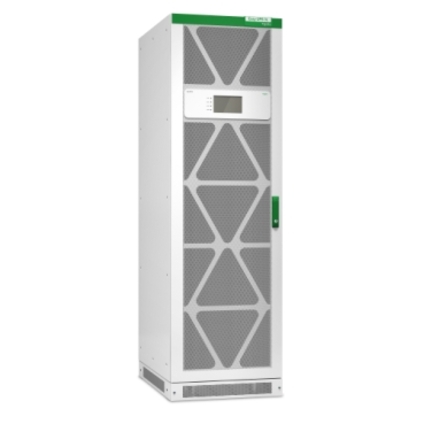

Easy UPS 3L 400kVA 400V 3:3 UPS, Startup 5x8
The Easy UPS 3L from Schneider Electric, model E3LUPS400KHS, is a 400 kVA three-phase uninterruptible power supply designed to ensure continuous power in environments such as data centers, industrial facilities, and critical infrastructures.
Description
This 400 kVA three-phase UPS model E3LUPS400KHS is easy to configure, operate, and maintain, combining competitive specifications, a compact footprint, and highly available redundant and parallel designs. Connected to Schneider Electric’s EcoStruxure, the Easy UPS 3L is the ideal choice to ensure business continuity in your store or electrical room.
Main Features:
Power and Capacity: 400 kVA (400 kW)
Input and Output Voltage: 400 V three-phase
Battery Runtime: Depends on the external battery configuration
Dimensions: 1,800 mm (H) x 600 mm (W) x 1,000 mm (D)
Weight: 1,200 kg
Noise Level: 65 dBA
Certifications: CE, EAC, RCM
Additional Features:
- Installation and Maintenance: Modular design simplifies installation, connection, operation, and maintenance. The UPS includes a 5x8 startup service.
- Management and Monitoring: Compatible with EcoStruxure IT for cloud-based remote monitoring and management.
- Protection and Reliability: Operates with online double conversion technology, providing optimal protection against voltage fluctuations.
Features
On-line Double conversion
Dust Filter Installation Manual Commissioning Service
