Easy UPS 60KVA 400V 3:3 UPS, 3 internal 9AH

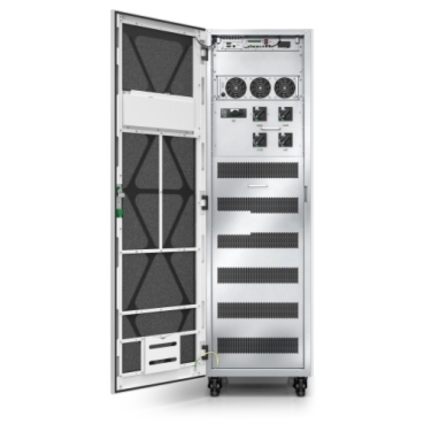

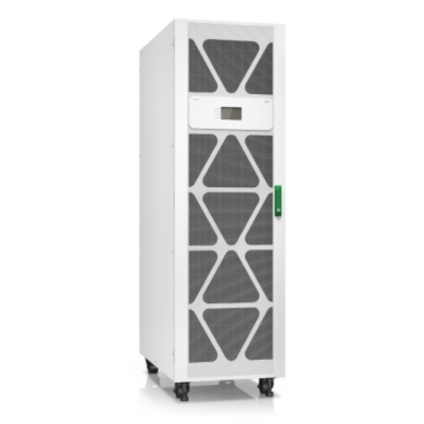

The Easy UPS 3M, model E3MUPS60KHB2S, is a 60 kVA three-phase uninterruptible power supply designed to ensure continuous power in environments such as small to medium data centers and other critical applications.
Description
Thanks to its advanced features, robust electrical specifications, and compact design, the Easy UPS 3M simplifies business continuity. Ideal for small to medium-sized data centers and other strategic applications, this EcoStruxure-compatible UPS provides peace of mind through cloud-based remote monitoring and management. For more information on battery runtime, please refer to the runtime tables available in the Documents tab. Includes a 5x8 startup service.
Main Features:
Power and Capacity: 60 kVA (60 kW)
Input and Output Voltage: 400 V three-phase
Battery Runtime: Approximately 13.5 minutes at full load (60 kW)
Batteries: VRLA (sealed lead-acid) technology with a voltage of 240 V. The UPS is equipped with 3 modular 9 Ah battery strings, expandable up to 6 for extended runtime.
Dimensions: 197 cm (H) x 60 cm (W) x 100 cm (D)
Weight: 743 kg
Noise Level: 65 dBA
Certifications: CE, EAC, RCM
Features
On-line Double conversion
VRLA Batteries Dust Filter Installation Guide Commissioning Service
