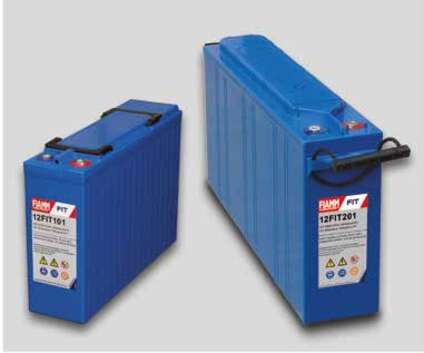

Battery 12FIT40 - 12V 40AH - VRLA - AGM
FIT batteries are valve-regulated lead-acid (VRLA) batteries using Absorbed Glass Mat (AGM) technology. Designed for backup applications, they are especially suited for telecommunications installations, data centers, and railway infrastructure.
Description
Main Features:
Front Terminal Design: This configuration facilitates easy access to terminals, simplifying installation and maintenance, especially in 19" and 23" cabinets.
High Energy Density: Optimized to minimize space while providing high energy capacity, ideal for confined spaces.
Robust Construction: Flame-retardant ABS plastic casing compliant with UL94 V0 standard, ensuring high safety and superior thermal stability to prevent casing swelling.
Low Self-Discharge: Self-discharge rate below 2% per month, ensuring long shelf life.
- Dimensions and Weight: Length 280 mm, width 105 mm, height 198 mm, and weight approximately 15.2 kg.
- Service Life: Designed for a 10-year service life in float operation at controlled temperature.
- Float Charge Voltage: 2.27 V per cell at 20°C.
- Maximum Charge Current: 8 A.
- Internal Resistance: 8 m.
- Short Circuit Current: 1000 A.
Applications:
- Telecommunications systems
- Data centers
- Railway infrastructure
- Uninterruptible power supply (UPS) systems
- Industrial applications requiring reliable backup power.
Features
AGM
